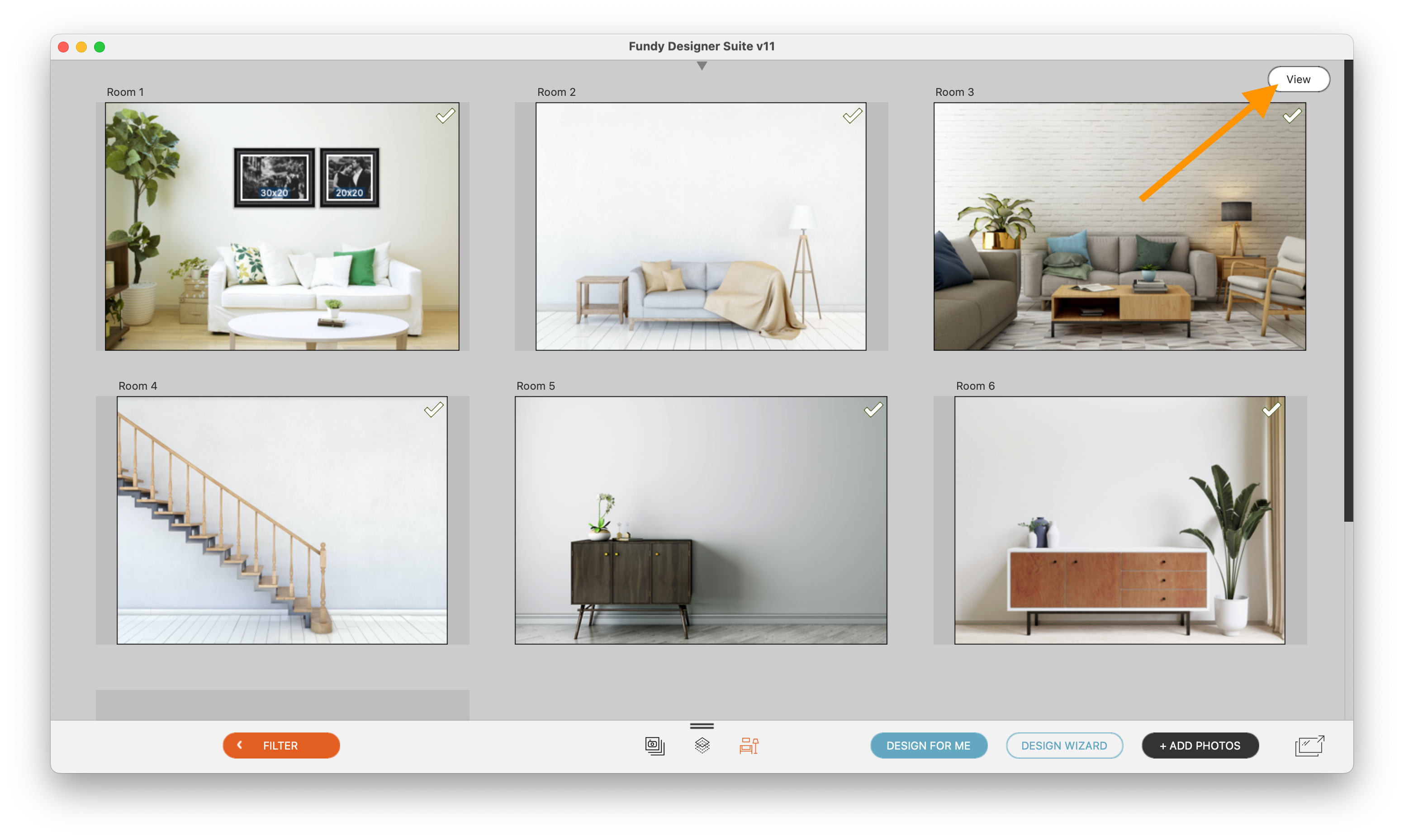

The screen where all of the rooms are viewed at once is Planner View. Quick designing is best in this view. Swap between Planner View and Designer View using the View button in the top right or the 'V' key.
Features covered: Add Rooms | Add Images | Rename Rooms | Select Rooms | Design Tools
Add Rooms

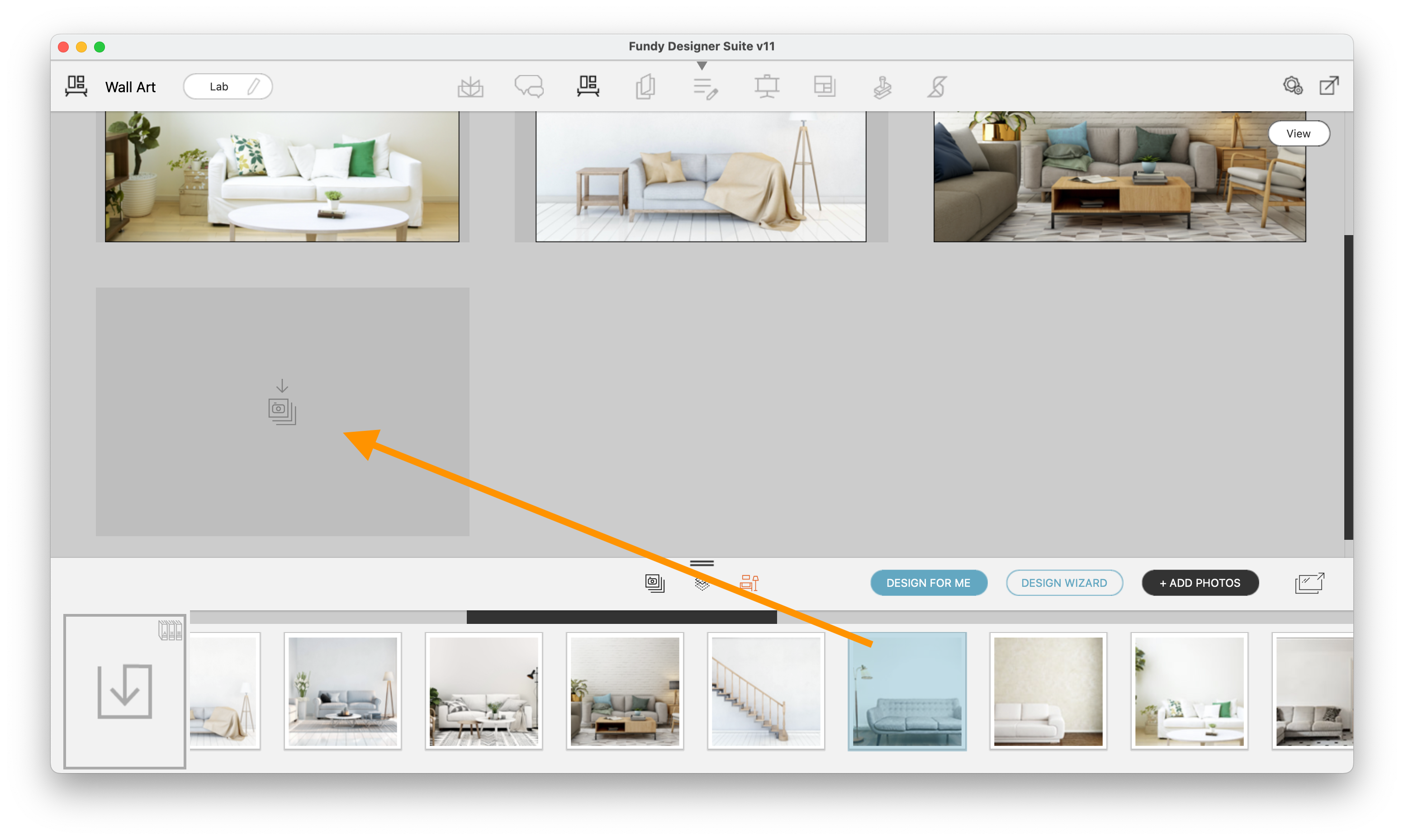

Add rooms by dragging images or a room to the grey box at the end of the current rooms. Learn more about adding new stock rooms designs here.
Add Images

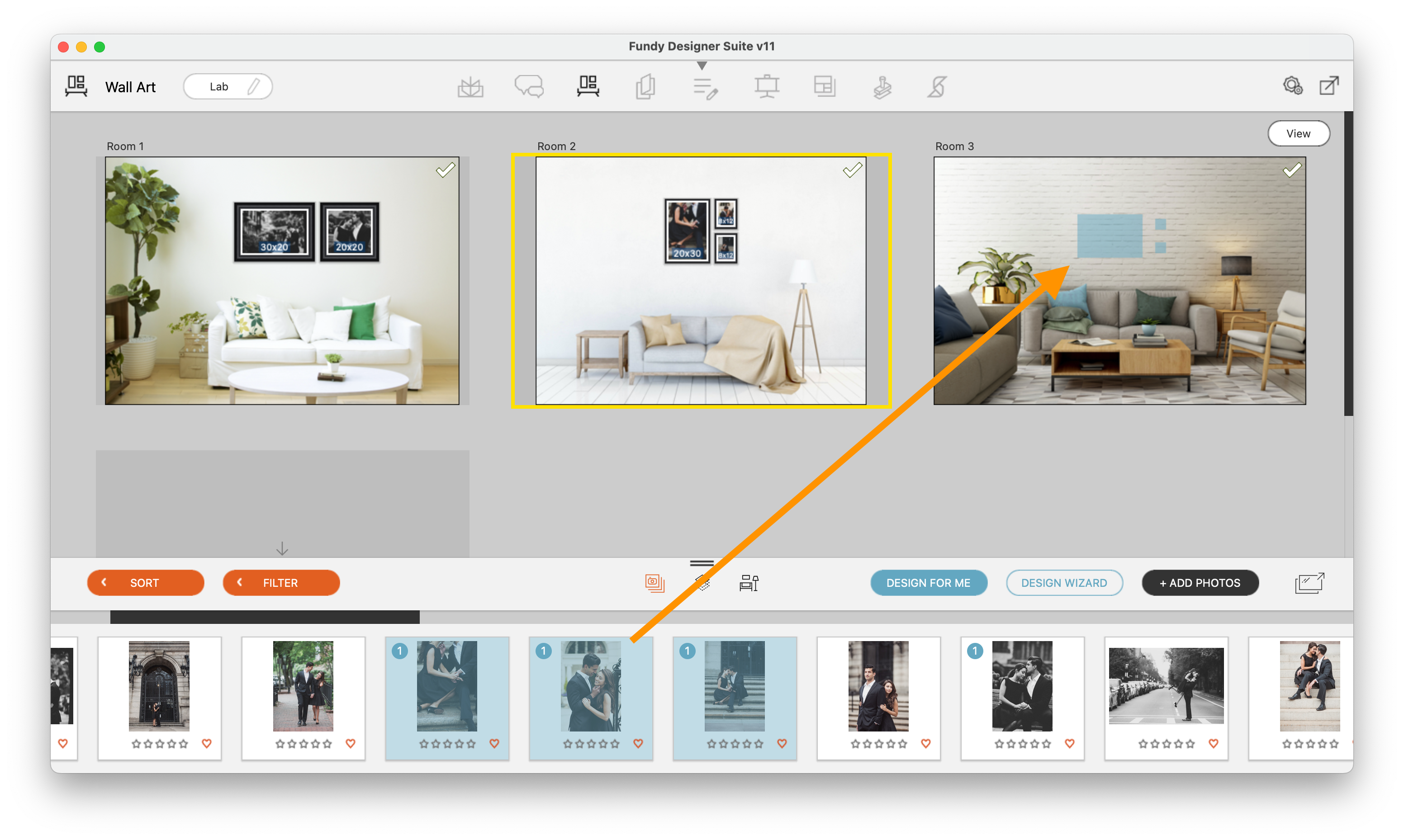

To add images to the wall, select the desired image(s), then drag and drop them onto the wall. A layout will be Auto Designed after dropping images onto the wall.
Rename Rooms
Rooms are numbered by default. Change the name of a room by clicking the text box above the room to type in the new name.
Select Rooms
Select the rooms you would like to order or export by clicking the check mark in the upper right hand corner of each room.
Planner View Design Tools

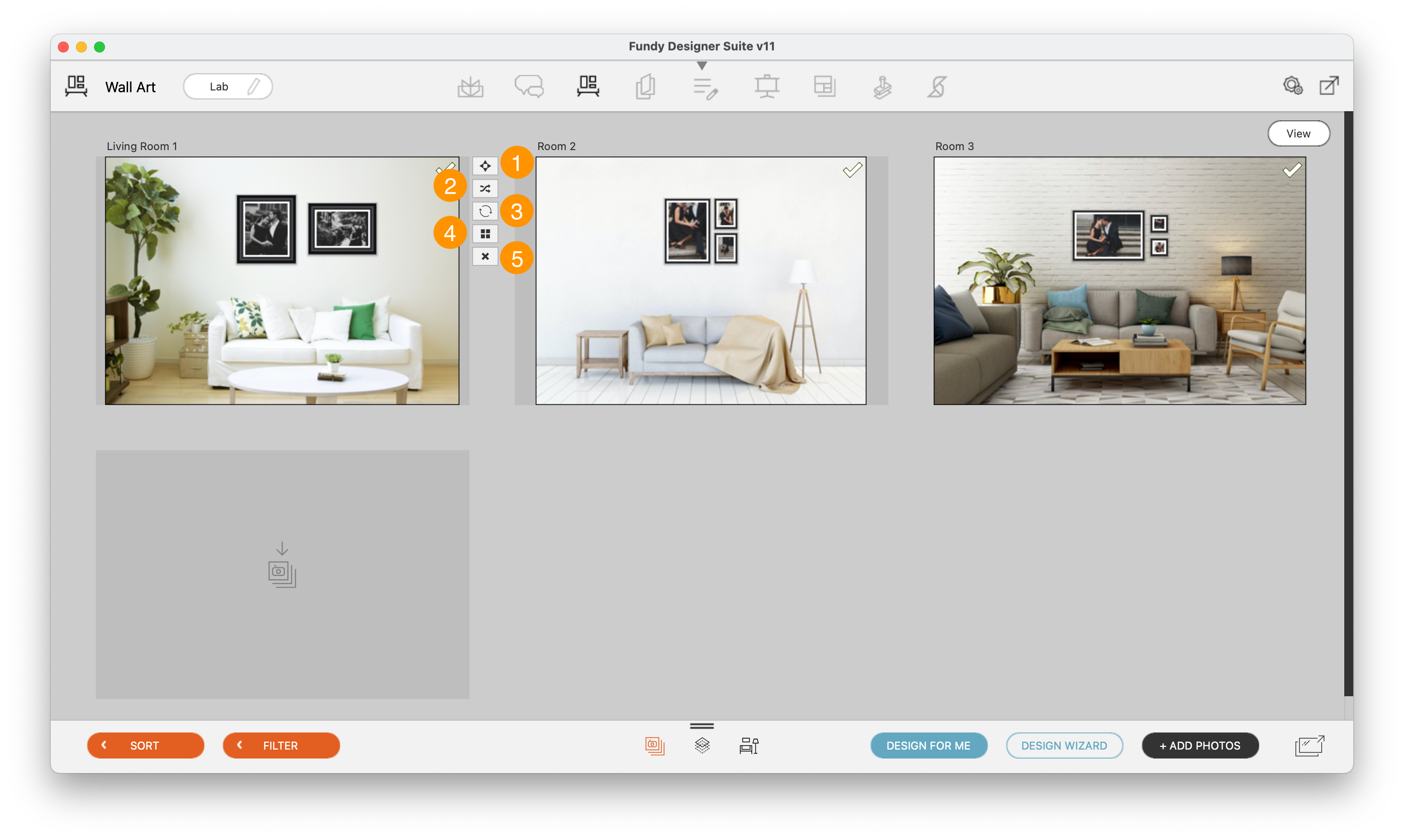

Hover a room to see the Planner View tools appear to the right. Use these tools to do the following things:
1. Move Tool. Select the tab and drag the room to the desired position.
2. Shuffle Design. Shuffle the Auto Design on the wall to different layouts.
3. Shuffle Images. Shuffle the image placement while retaining the same design.
4. Quick Design Picker. Open the layout picker to see a variety of layout options at once.
5. Delete Spread. Select the 'X' to delete a room.
